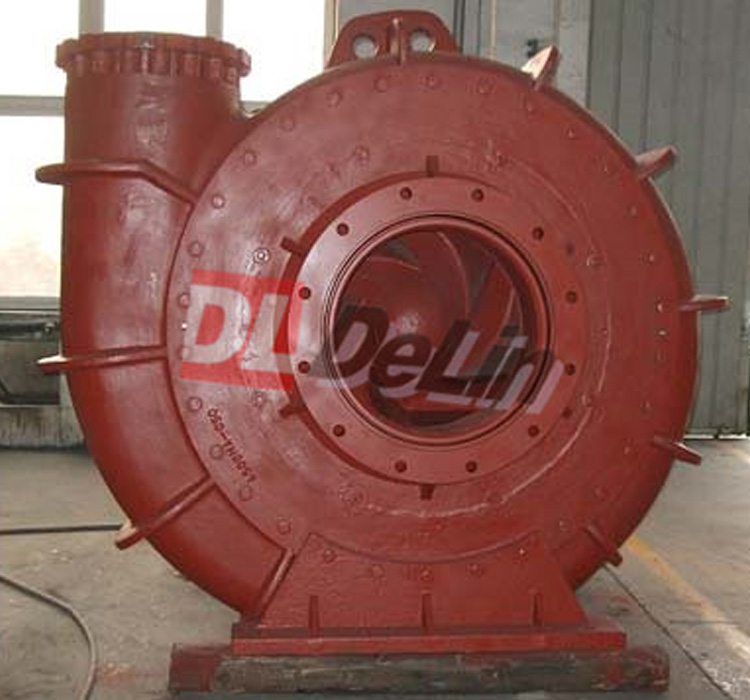

二重ケーシングドレッジポンプ
  • 二重ケーシングドレッジポンプ

二重ケーシングドレッジポンプ

主なパラメータ :

Model: DG Series Dredge Pump

Size: 100-12000mm

Capacity: 60-30000m3/h

Head: 10-120m


  • 説明
  • セレクションチャート
  • パフォーマンスパラメータ
  • 設置寸法

DG Series Dredge Pump

Model: DG Series Dredge Pump
Speed (r/min): 175-1400
Capacity (m³/h): 36-28000
Head(m): 3.5-78
Best efficiency: 30%-87%
NPSHr(m): 2.5-8
Shaft power Pa (KW):-
Allowed max particle size (mm): 82-350
Pump weight (kg): 460-121000
Discharge Dia.(mm): 100-1000
Suction Dia.(mm): 150-1200
Seal type: Mechanical seal

ImpellerVanes:3,4,5Material of liner: High Chrome Alloy
Type: CloseMaterial of casing:Cast iron/High chrome alloy
Material:High chrome alloyTheory:Centrifugal pump
Diameter (mm): 920-2710Structure: Single-stage pump


DG Series Dredge Pump


Delin Machinery is specializing in manufacturing slurry pumps, desulfurization pumps and dredge pumps in China.

The designation of DG series dredge pump is based on surveys on dredge pump used domestically and abroad. We

have conducted a lot of statistic analysis on dredge pumps or sludge pumps. Adopting different advance designing

methods and computer assistant designing software, this is a brand new DG series dredge pump, applied for deep

sea or offshore dredging, including extraction of sand and gravel, or transporting slurries. These DG series dredge

pumps feature excellent performance, outstanding structure design, ease of maintenance, and long service life, etc.


Features of Dredge Pump

1. DG series dredge pumps are of single stage, single suction, horizontal structure. According to discharging pressure, they are classified into two categories: single casing pump and double casing pump.

2. Double casing design enhances the safety reliability. If volute liner is getting close to being worn out, or split, there will be no water leakage inside pump house. Single casing dredge pump is of light weight and small volume. All of our DG series dredge pumps can be sump. The submerging depth can meet different requirements. Bearings use famous domestic or foreign brands. This series of dredge pump has long trouble free working time.

3. DG series dredge pump uses front dismantling structure, and is easy to stall, disassemble and repair. Different components have special dismantling tools.

4. Our dredge pump adopts standard screw thread for the connection of impeller and shaft, and equipped with removing of piston ring for the ease of assembling the impeller.


DG Series Dredge Pump

TypeCapacity(Q)Head (H)Speed (n)Max EfficiencyNPSHInlet DiameterOutlet DiameterMax. Particle SizeWeight
m³/hmr/min.%m(mm)(mm)(mm)(kg)
DG150×100-D36-2523.5-51600-140030-502.5-3.515010082460
DG200×150-E137-57610-48800-140050-603-4.52001501271120
DG250×200-S216-97913-50500-100045-653-7.52502001782285
DG300×250-G360-151211-58400-85050-702-4.53002502204450
DG350×300-G504-31686-66300-70060-682-83503002405400
DG450×400-T864-38169-48250-50060-723-645040025410800
DG250×200H-S396-129610-80500-95060-722-52502001803188
DG300×250H-T612-223228-78350-70060-722-83002502104638
DG400×350H-TU720-360020-72300-50060-723-640035023012250
DG250X200L340-87010-4590065-70<42502001782500
DG250X200MS520-100038-6585070-74<42502001803000
DG300X250L500-95010-4270065-68<43002502203000
DG350X300L700-240010-3865074-78<43503002416000
DG350X250M500-150035-6860074-78<43502502203513
DG450X300M900-250040-7055076-80<44503002413513
DG450X350M1200-350040-7055071-75<44503502457300
DG500X450L1200-380010-434878-80<45004503547850
DG600X450MS1500-420040-7650080<46004503547950
DG650X550L1800-550010-4842083<46505503008000
DG650X500MS2000-600035-7344085<465055025011300
DG700X600MS2500-800030-7647085<470060022030000
DG760X700MS2800-1000030-7638081<476070028045000
DG800X700L3000-850010-4338081<480070028023000
DG800X750MS5500-1400034-7434981<480075029055000
DG900X800L4000-1300010-4028085<490080030023000
DG900X850MS7000-1700034-7433085<490085032065000
DG1000X900MS8000-2000034-7417585<4100090034080000
DG1050X950L7500-1700010-3825885<4105095034595000
DG1200X1000MS8000-2800024-7529085-87<412001000350121000



DG Series Dredge Pump


TypeOutline Dimension
ABCDEFGD1E1G1HYIN-dLMN
DG150X100-D10064924322133875289---54164654-Ф22330203260
DG200X150-E12866225462575483365---75222804-Ф29392295352
DG250X200-S1720920760----64070780902801204-Ф35378330416
DG300X250-G20101207851----749648761523561404-Ф41473368522
DG350X300-G20961207851----749648761523561404-Ф41502424610
DG450X400-T23201150900----8808010401253501504-Ф48538439692
DG250X200H-S1774920760----64070780902801204-Ф35455330475
DG300X400H-T20621219851----749648761523561404-Ф41496400605
DG400X350H-TU236714601200----8609510501503501504-Ф70649448765



TypeOutline dimensionWeight(kg)
ABCDEFHML
DG350X250M16916147527377112884006703443515
DG450X300M22796408608528623605007874167000
DG600X450M26708507009409554054758754837850
DG650X500M23138001207106010905337009505208000



TypeOutline dimensionWeight(kg)
ABCDFHH1MLW1W2
DG700X600MS31215801377139070660080012305801550140030000
DG700X650MS317510001400141072060049513006231700150040000
DG760X700MS378812501781161869373588514807861985183951000
DG800X750MS316411721787171084076055017106952050180050000
DG1000X900MS4013145021602055889793115017709552450225090000
DG1200X1000MS473517452545234099293511301865118829152627140000



TypeOutline dimensionWeight(kg)
ABCDFHH1MLW1W2
DG700X600M29237751088112045553080310506351055116015000
DG760X700M300310111346127862153053012006851466160821000
DG800X750M3164117214981317546550--15186941370154125000
DG1000X900MS34013145018401900682.573573517509552050223046000
