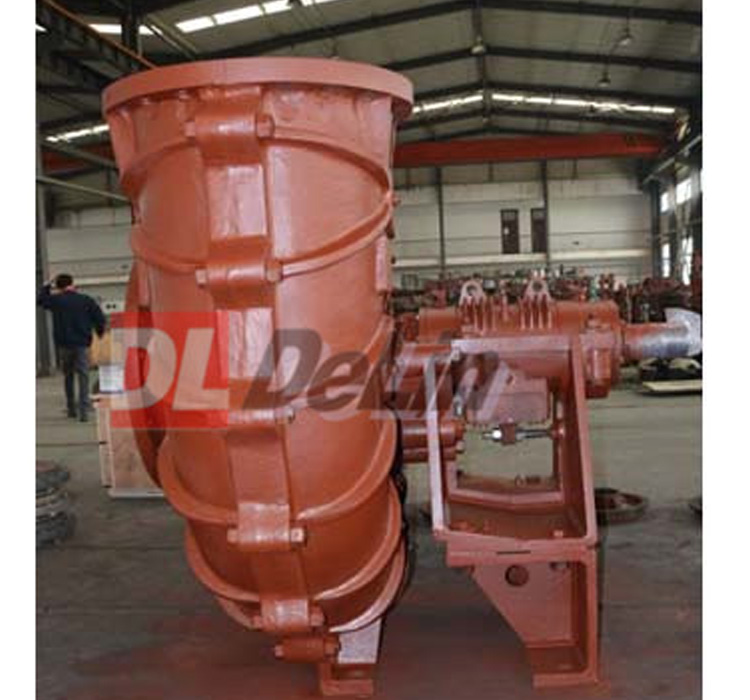

二重ケーシングFGDポンプ
  • 二重ケーシングFGDポンプ

二重ケーシングFGDポンプ

主なパラメータ :

Model: DSC(R) Series FGD Pump

Capacity: 1083-2722L/s

Head: 26-27m

Speed: 550-740r/min

Material: high chrome alloy and rubber


  • 説明
  • セレクションチャート
  • パフォーマンスパラメータ
  • 設置寸法


DSC(R) Series FGD Pump

Model: DSC(R) Series FGD Pump
Speed (r/min): 550-740
Capacity (l/s): 1083-2722
Head (m): 26-27
Best efficiency: 85%-90%
NPSHr (m): 4.1-5.2
Shaft power Pa (KW): -
Allowed max particle size (mm):-
Pump weight (kg): 4000-8300
Discharge dia. (mm): 500-800
Suction dia. (mm): 600-900
Seal type: Mechanical seal

ImpellerVanes: 4, 5Material of liner: High chrome alloy/Rubber
Type:-Material of Casing: Cast iron
Material:High chrome alloyTheory: Centrifugal pump
Diameter (mm): 700-1285Structure: Single-stage pump

Hebei Delin Machinery is one of the biggest pump companies specialized in  manufacturing slurry pumps in China, with land area of more than 40,000m2 and building area over 22,000m2. The products are mainly used for river course diversion, mining, metallurgy, city planning, power, coal, FGD, petroleum, chemical industry, building material production, etc. DSC(R) series FGD pump is a type of centrifugal pump, single- suction, single-stage and with horizontal structure, featuring benefits of broad flow rate, high efficiency and energy-saving. FGD pump series are of compact design and space-saving. As a professional slurry pump manufacturer and supplier in China, we have developed a variety of materials for DSC(R) series FGD pumps.


Features of FGD Pump

1. CFD flowing simulating analysis technology is adopted for pump wet parts, with reliable design and high efficiency.2. Adjusting bearing assembly can change the impeller position in volute, keeping pump unit in a high efficient operating state.

3. DSC(R) series FGD pumps are of rear side disassembly design, have a simple structure, and are easy to maintain. No need to dismantle suction and discharge pipes.

4. Double-row tapered roller bearings are fitted on a pump end, roller bearing on a drive end. Bearings are lubricated by oil, improving their working condition and prolonging service life.

5. Mechanical seal is specially designed for cartridge mechanical seal used in FGD pump process of DSC(R) series FGD pumps with reliable operation.


Material for DSC(R) Series FGD Pump

We developed a new kind of material - duplex phase stainless white iron - which is especially suitable for FGD devices. With anti-abrasive property of duplex stainless steel and corrosion resistance of high chrome white iron, the material qualifies for FGD process.

1. Pump casing, pump cover and adaptor plate are bearing pressure parts which are made of ductile iron and lined with rubber.

2. Impeller, suction cover/front liner insert are made of duplex phase stainless white iron.

3. Front liner, back liner, back liner insert are made of natural rubber which has good anti-corrosive property, light weight and low cost.


DSC(R) Series FGD Pump

TypeCapcity(Q)Head(H)Speed(n)Efficiency ŋNPSHDischarge Dia./suction Dia.
m3/hL/smR/min.%m(mm/mm)
500DSC(R)3900108326740855500/500
600DSC(R)6300175026650884.1600/700
700DSC(R)7600211127560874.3700/800
800DSC(R)9800272227550905.2800/900


Double Casing FGD Pump

TypeABBBDE1E2F*h1h2JKM*L1L2dWeight(kg)
500DSC(R)17731000/960850652110515953540120210421150400f42/f404000
600DSC(R)1855960850670110506673540120284525330610f394580
700DSC(R)231513001100895130757684045150355583375720f517280
800DSC(R)246013001100885135759334045150355712550800f518300



TypeNP1P2Q*T1*T2*U1U2DO2DI2n2d2DPC2DO1DI1n1d1DPC1
500DSC(R)580950500665604473594671550020336507155001833350
600DSC(R)70010505007754840901115591060024308408406001836770
700DSC(R)78012907009306860108013501025768244095010257002240950
800DSC(R)9301400700985626211411493112590028401050112580026401050
