Submersible Slurry Pump

DS Series Submersible Slurry Pump

DS series submersible slurry pumps are suitable for conveying slurries containing abrasive particles such as sand, slag, and tailings. They are primarily used in industries such as metallurgy, mining, power generation, chemical engineering, environmental protection, river dredging, sand pumping, and municipal engineering. This product is easy to install and move, has high pumping efficiency, and can operate safely for extended periods under harsh conditions, making it an ideal replacement for traditional vertical submersible pumps and submersible sewage pumps.

Previous: No more data

Next: No more data

INQUIRE NOW

CONTACT US

Product Details

Features

Wide range of applications

High efficiency and high wear resistance

Low operating noise and more environmentally friendly

Mechatronics integration, simple and quick installation

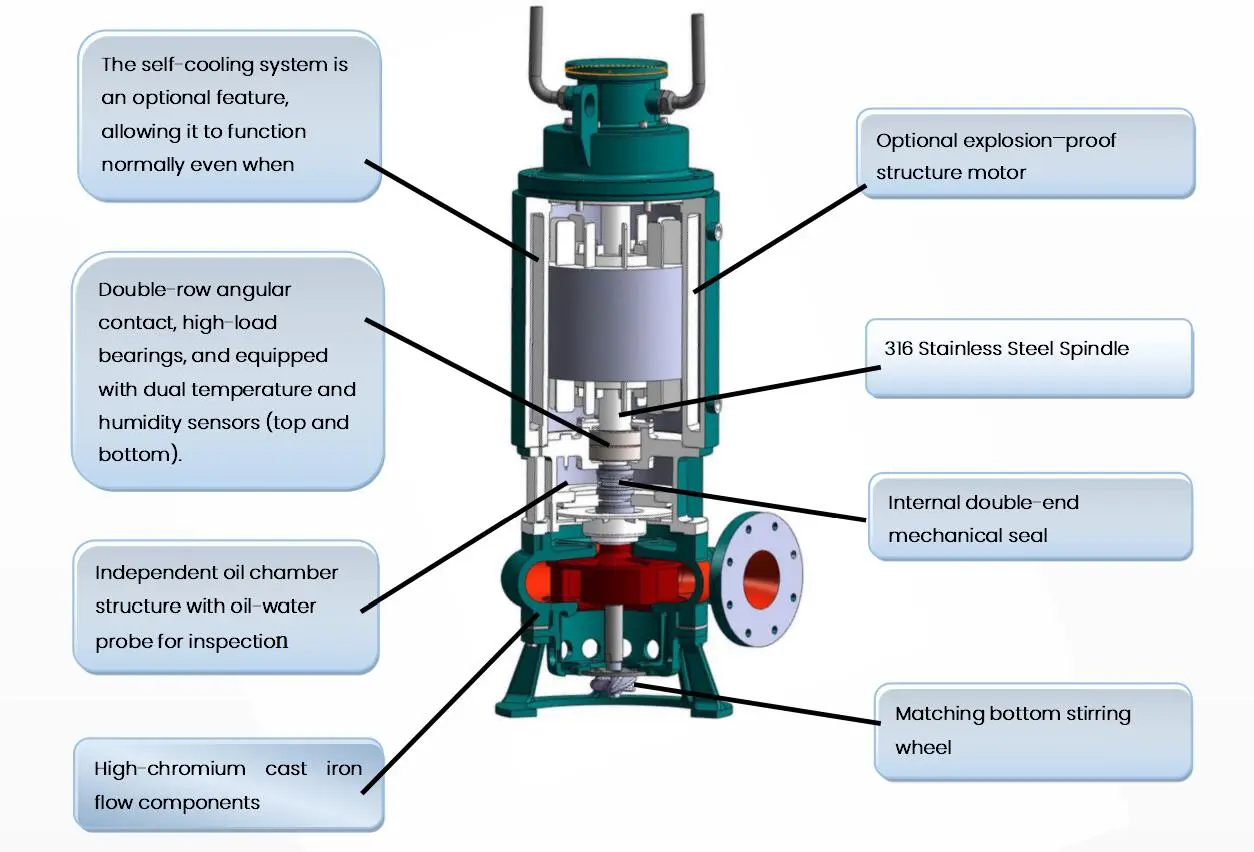

Section Chart of DS Series Submersible Slurry Pump

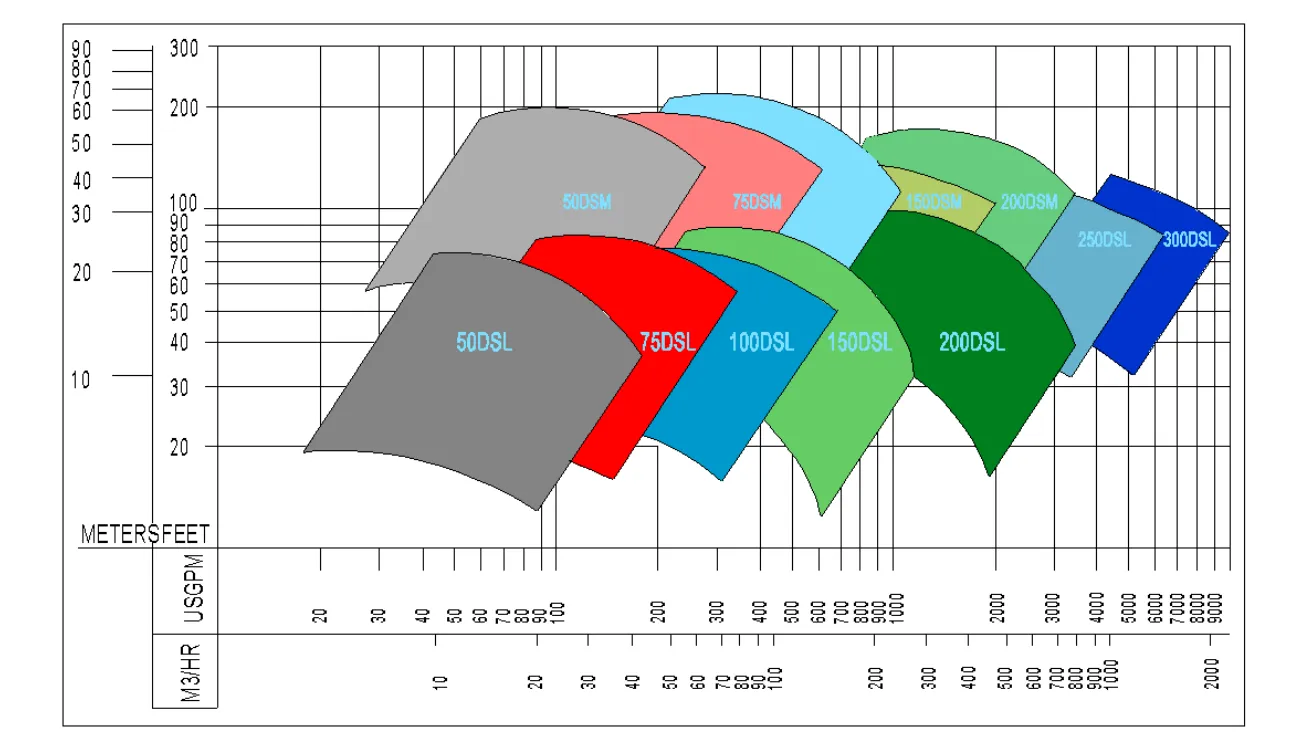

Performance Parameter

Model	Flow rate (m³/h)	Head (m)	Power (kW)	Speed (r/min)	Particle size (mm)
50DSL	31.5	22	11	1750	16
	45	20	11
	54	18.5	11
	28	17.5	7.5
	40	16	7.5
	48	15	7.5
	25	14	5.5
	36	12	5.5
	43	11.8	5.5
75DSL	56	22	15	1750	22
	80	20.5	18.5
	96	19	18.5
	50	17.5	11
	71	16	15
	76	15	15
	45	14	7.5
	64	13	11
	77	12	11
100DSL	119	24	30	1750	32
	170	22	30
	204	19.5	37
	106	19	18.5
	151	17.5	22
	181	15.5	30
	95	15	15
	136	14	18.5
	163	12.5	18.5
150DSL	245	25.5	55	1750	32
	350	23	75
	420	21	75
	220	20.5	37
	315	18.5	45
	378	17	55
	193	16.3	30
	280	14.7	37
	336	13.5	37
200DSL	450	24.5	75	1170	32
	700	22	90
	840	19	110
	402	19.5	55
	625	17.5	75
	750	15	90
	360	15.7	37
	560	14	55
	672	12	55
250DSL	900	27	160	880	56
	1500	24	200
	1800	22	200
	805	21.6	110
	1341	19.2	200
	1610	17.5	200
	720	17.2	75
	1200	15.3	110
	1436	14	132
75DSM	128	46	45	1750	35
	160	44	55
	200	42	75
	110	38	30
	150	34	37
	175	32	37
	95	31	22
	127	29	30
	155	26	30
100DSM	220	42	55	1750	40
	280	38	55
	325	35	75
	210	30	37
	250	27	45
	290	24	45
	175	26	30
	210	23	30
	260	18	30
150DSM	520	38	132	1170	55
	600	35	132
	700	32	150
	425	30	90
	500	28	90
	600	25	90
	380	25	55
	475	23	75
	550	20	75
200DSM	900	32	160	1170	60
	1000	28	160
	1200	24	160
	800	28	120
	900	24	120
	1000	20	120
	700	22	90
	850	18	90
	950	14	75
